PWKRE Cam Followers

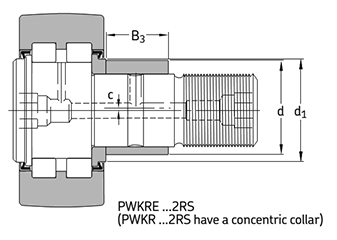

Drawing
Datasheet
| Bearing No. | Dimensions | Mass | ||||||||||||||
| D | C | d | B | B1 | B2 | C1 | d1 | G | G1 | M | M1 | SW | c | B3 | ||
| – | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg |
| PWKRE 35.2RS | 35 | 18 | 20 | 52 | 29,5 | 8 | 3,8 | 27,6 | M 16x1.5 | 17 | 6 | 3 | 8 | 1 | 12 | 0,18 |
| PWKRE 40.2RS | 40 | 20 | 22 | 58 | 33,5 | 8 | 3,8 | 30 | M 18x1.5 | 19 | 6 | 3 | 8 | 1 | 14 | 0,26 |
| PWKRE 47.2RS | 47 | 24 | 24 | 66 | 40,5 | 9 | 0,8 | 27 | M 20x1.5 | 21 | 6 | 4 | 10 | 1 | 18 | 0,4 |
| PWKRE 52.2RS | 52 | 24 | 24 | 66 | 40,5 | 9 | 0,8 | 31 | M 20x1.5 | 21 | 8 | 4 | 10 | 1 | 18 | 0,47 |
| PWKRE 62.2RS | 62 | 28 | 28 | 80 | 49,5 | 11 | 1,3 | 38 | M 24x1.5 | 25 | 8 | 4 | 14 | 1 | 22 | 0,82 |
| PWKRE 72.2RS | 72 | 28 | 28 | 80 | 49,5 | 11 | 1,3 | 44 | M 24x1.5 | 25 | 8 | 4 | 14 | 1 | 22 | 1,05 |
| PWKRE 80.2RS | 80 | 35 | 35 | 100 | 63 | 15 | 1 | 47 | M 30x1.5 | 32 | 8 | 4 | 14 | 1,5 | 29 | 1,67 |
| PWKRE 90.2RS | 90 | 35 | 35 | 100 | 63 | 15 | 1 | 47 | M 30x1.5 | 32 | 8 | 4 | 14 | 1,5 | 29 | 2,02 |
